| Imaged Double Stars | |||||||
| Date: | 8. Jän. 2002 | ||||||
| The following table is a summary of imaged doubles with comprehensive data. | |||||||
| The list will be completed with more doubles as the imaging continues. | |||||||
| The color balance is difficult to achieve, so comments to other visual impressions are welcome. | |||||||
| Also remarks about data errors and tips for more interesting doubles are very appreciated. | |||||||
| PW is the angle between north and the connection line of the both stars measured to direction east. | |||||||
| The orientation of the images is such that the bottom of the image shows to the horizon (naked eye view) | |||||||
| copyright: J.Schedler | |||||||
| (! link to image below !) | RA | DEC | Dist. 2001 (") | Mag | PW 2001 (°) | color | |
| Aquila (Adler): | |||||||
| pi Aquilae | 19 48 42 | +11 48 57 | 1,2 | 6/7 | 111 | -- | |
| Bootes: | |||||||
| 44 Bootis | 15 03 54 | +47 39 00 | 2,2 | 5,3/6,2 | 53 | -- | |

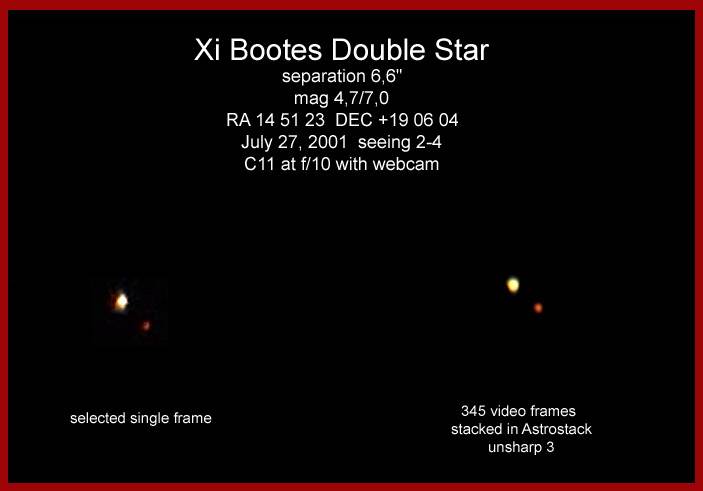

| xi Bootis | 14 51 23 | +19 06 04 | 6,6 | 4,7/7,0 | 317 | yellow -red | |

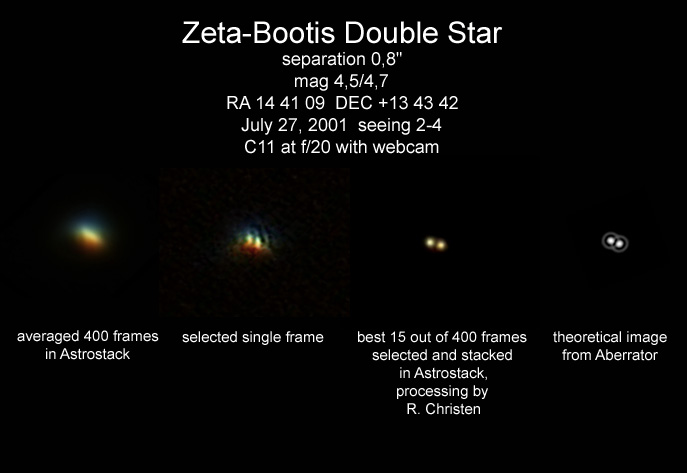

| zeta Bootis | 14 41 09 | +13 43 42 | 0,8 | 4,5/4,7 | 300 | -- | |

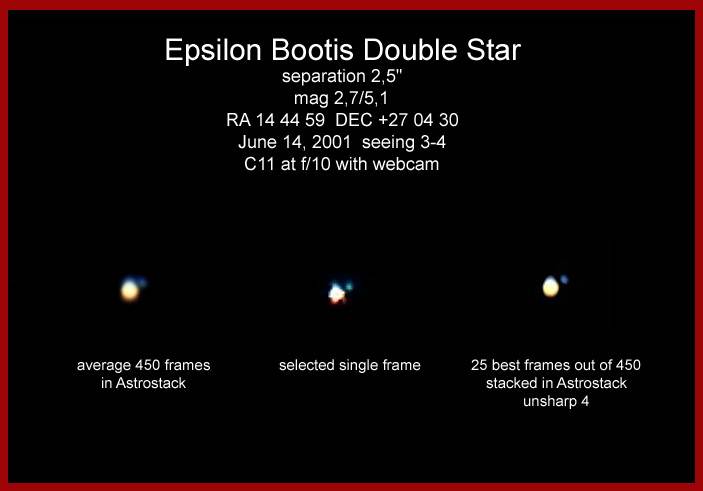

| epsilon Bootis | 14 44 59 | +27 04 30 | 2,5 | 2,7/5,1 | 339 | yellow-blue | |
| Cepheus: | |||||||

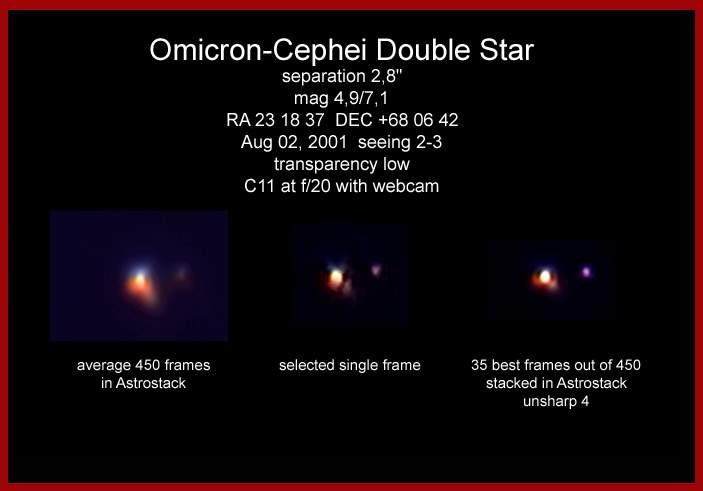

| omikron Cephei | 23 18 37 | +68 06 42 | 2,8 | 4,9/7,1 | 223,0 | white-purple | |

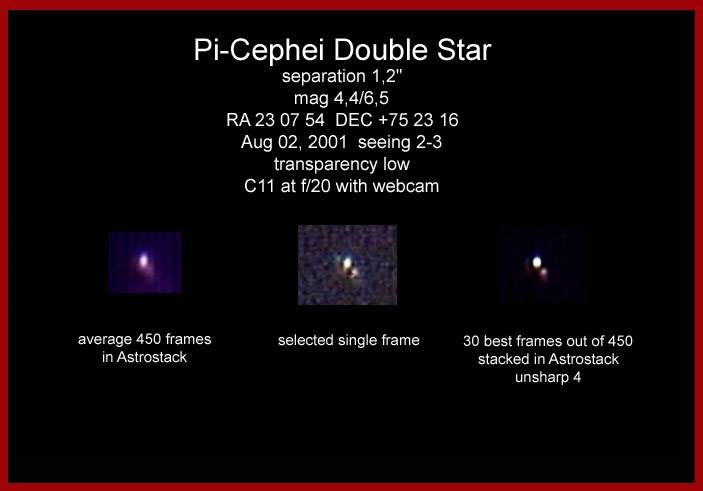

| pi Cephei | 23 07 54 | +75 23 16 | 1,2 | 4,6/6,6 | 358 | -- | |
| xi Cephei | 22 03 47 | +64 37 41 | 8,2 | 4,4/6,5 | 274 | white-purple | |
| Corona Borealis (nördliche Krone): | |||||||

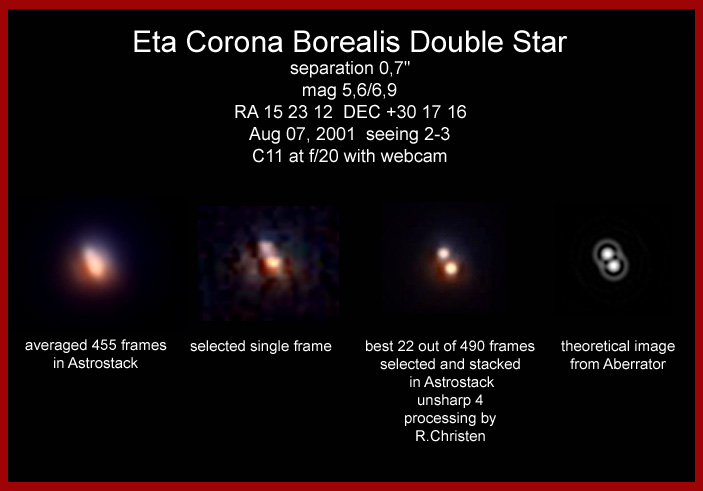

| eta Coronae Borealis | 15 23 12 | +30 17 16 | 0,7 | 5,6/6,9 | 71 | -- | |

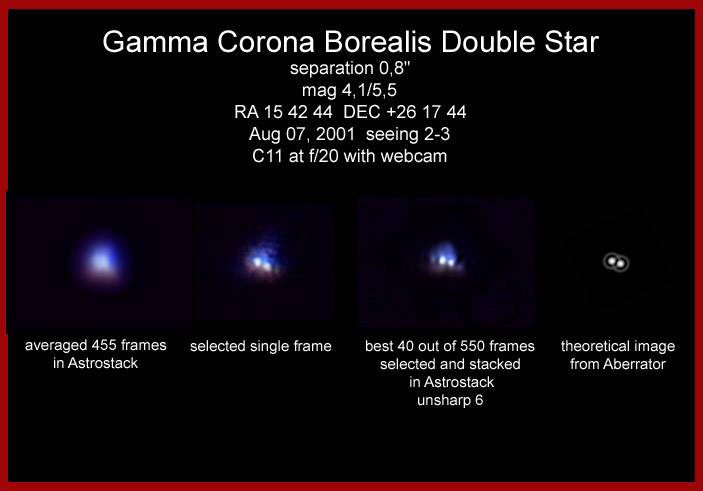

| gamma Coronae Borealis | 15 42 44 | +26 17 44 | 0,8 | 4,1/5,5 | 114 | blue | |

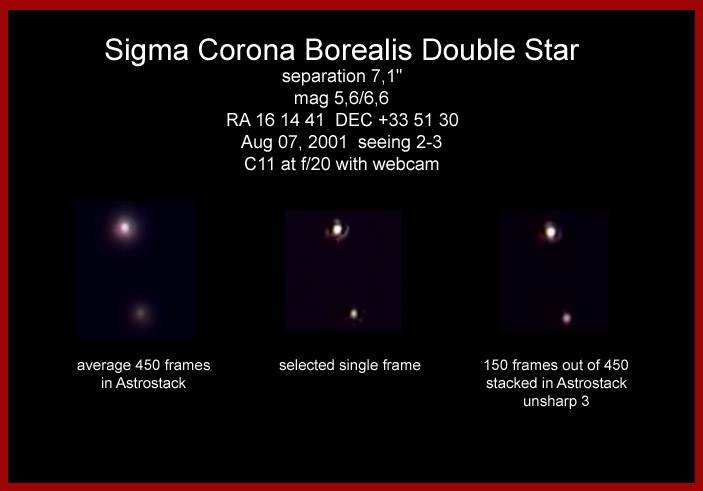

| sigma Coronae Borealis | 16 14 41 | +33 51 30 | 7,1 | 5,6/6,6 | 237 | -- | |
| Cygnus (Schwan): | |||||||

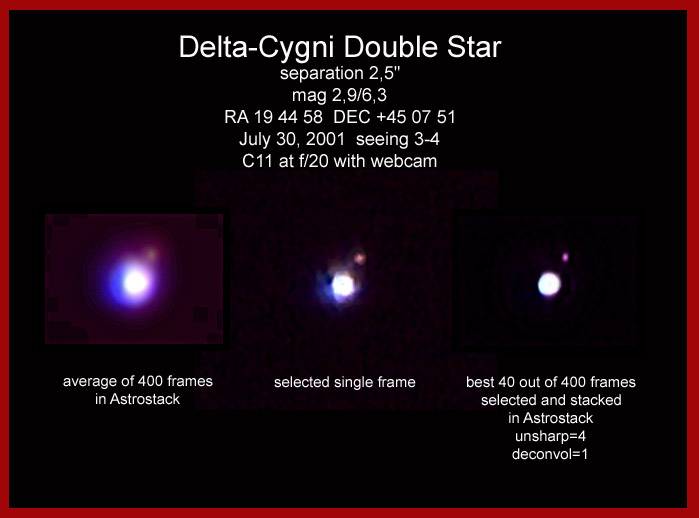

| delta Cygni | 19 44 58 | +45 07 51 | 2,5 | 2,9/6,3 | 221 | white-pink | |
| lamda Cygni | 20 47 24 | +36 29 27 | 0,7 | 5,0/6,5? | 28? | -- | |
| mu Cygni | 21 44 8 | +28 44 34 | 1,2 | 4,8/6,1 | 322 | ||

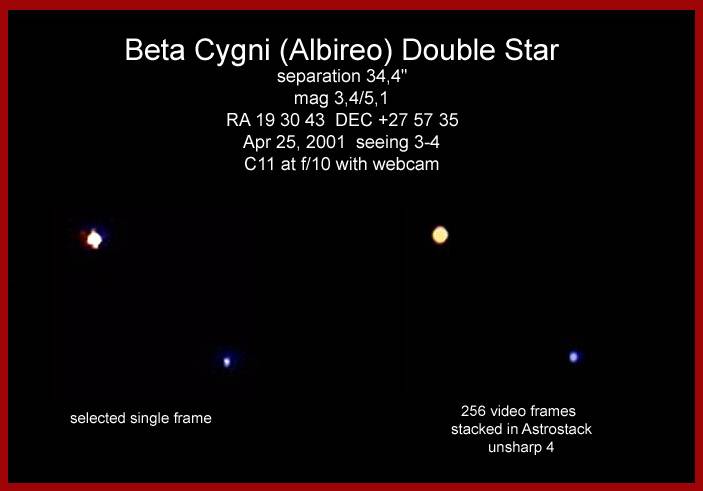

| Beta Cygni (Albireo) | 19 30 43 | +27 57 35 | 34,4 | 3,4/5,1 | orange-blue | ||
| omicron 1 Cygni | 19 17 06 | +53 22 06 | 101,0 | 3,8/7,0 | orange-blue | ||
| Draco (Drache): | |||||||
| 26 Draconis | 17 34 59 | +61 52 28 | 1,7 | 5,3/7,9 | 330 | ||
| mu Draconis | 17 05 20 | +54 28 13 | 1,9 | 5,6/5,7 | 6 | ||
| Gemini (Zwillinge): | |||||||

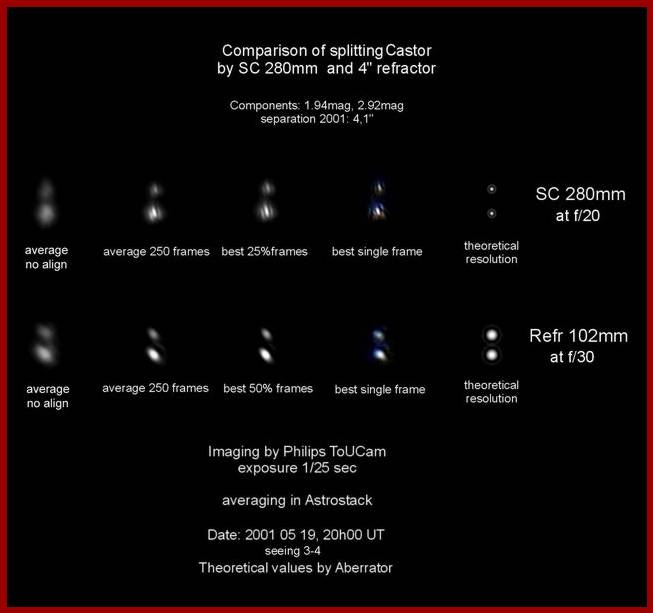

| Castor | 07 34 36 | +31 53 18 | 4,1 | 1,9/2,9 | 66 | -- | |
| Hercules: | |||||||

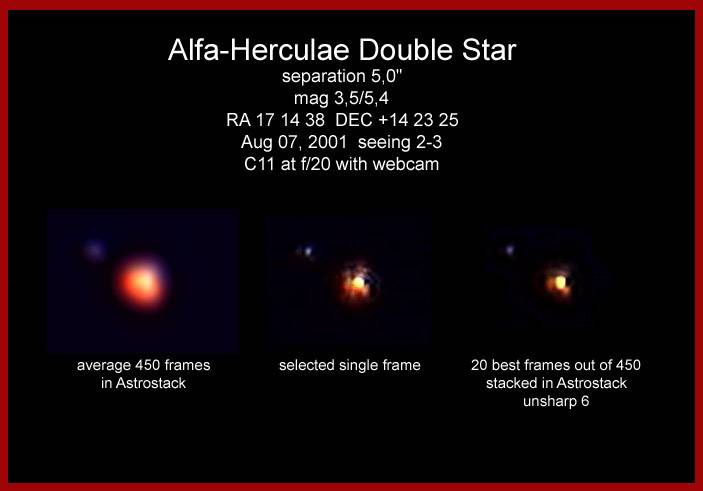

| alfa Herculae | 17 14 38 | +14 23 25 | 5,0 | 3,5/5,4 | 110 | yellow-blue | |

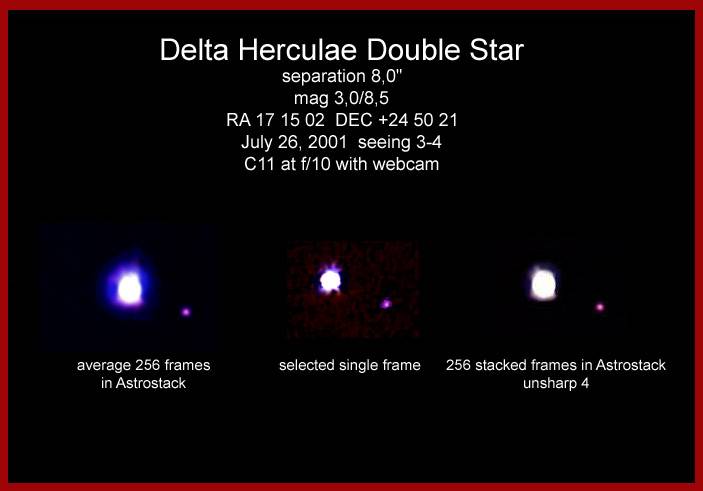

| delta Herculae | 17 15 02 | +24 50 21 | 8,0 | 3,0/8,5 | 241 | white-lila | |
| Lyra (Leier): | |||||||
| epsilon Lyrae (1) | 18 44 20 | +39 40 12 | 2,6 | 5,0/6,1 | 350 | ||
| epsilon Lyrae (2) | 18 44 23 | +39 36 46 | 2,3 | 5,2/5,5 | 82 | ||
| delta(1) Lyrae | 18 53 44 | +36 58 18 | 20,0 | 4,3/5,6 | pale -- | ||
| Orion: | |||||||
| beta Orionis | 05 14 30 | -08 12 00 | 9,0 | 0/7,0 | 202 | white | |
| Ursa Major (großer Bär): | |||||||
| xi Ursae Majoris | 11 18 11 | +31 31 45 | 1,8 | 4,3/4,8 | 267 | ||
| 78 Ursae Majoris | 13 00 46 | +56 21 55 | 1,5 | 5,0/7,4 | 71 | ||

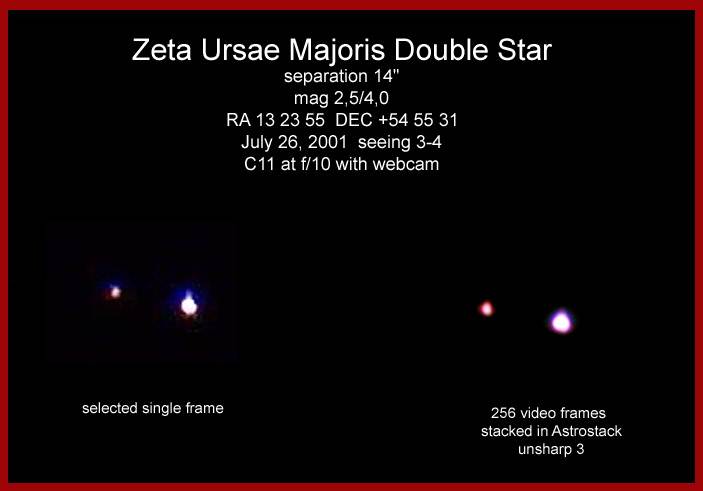

| zeta Ursae Maioris | 13 23 55 | +54 55 31 | 14,0 | 2,5/4,0 | 151 | -- | |
| sigma Ursae Majoris | 09 10 24 | +67 06 00 | 2,0 | 5,0/8,5 | 20 | ||
| Ursa Minor (kleiner Bär): | |||||||
| Polaris | 02 31 49 | +89 15 51 | 18,5 | 2,1/9,1 | 216 | -- | |
